Voyager Pro Kit, Universal

Item # 922-123
$599.95 USD
Visit a Trail Tech dealership to learn more. Find a dealer near you

Description

Voyager Pro, The Connected Rider’s GPS. Trail Tech offers a variety of model specific and universal kits for complete vehicle integration. All kits include mounting hardware, tach sensor, and power connection. Temperature and wheel sensors vary by kit, see kit contents for details. Adventure Begins Here!

Overview & Specs

  • Trail Tech Voyager Pro, the Connected Rider’s GPS. A premium off-road GPS with 4 inch color touchscreen anti-glare display, sealed and rated IP67 for anti dust/water intrusion
  • The map screen is enabled with base maps, topography lines, hill shading, and some trails. Record or load GPX trails and riding areas, and transfer to a PC using the MicroSD card. Voyager Pro comes loaded with North American maps, but other map regions can be downloaded for free.
  • Amongst the major features is Buddy Tracking. Buddy Tracking uses localized radio signals and can support up to 20 riders in a single group. View members of your ride group on the map screen in real time, increase your following distances, and use the buddy beacon to summon your buddies. Cell reception is not required.
  • Buddy tracking displays the current location of up to 20 members of your ride group on the map screen
  • Voyager Pro is Bluetooth enabled for intercom, phone and media controls. Play songs from your phone or MicroSD card using a Bluetooth headset, speaker, or intercom. Two phones and two headsets can be connected at the same time.
  • The 4 inch glove friendly color touchscreen TFT display is visible in all conditions, including direct sunlight. Sealed and rated IP67 for anti-dust and water intrusion, it is built to withstand the harshest elements that come with extreme riding conditions. The mounting dock hard mounts to the dashboard, can be locked, and allows for quick removal of Voyager Pro from the machine. The dock utilizes the AMPs hole pattern, and is compatible with the full line of RAM brand mounts or Trail Tech mounting hardware.
  • Voyager Pro integrates with your vehicle using standard Trail Tech vehicle sensors, providing vital ride data such as engine temperature, RPM, battery voltage, speed/distance and more.
  • At 5.6 x 3.5 inches, Voyager Pro still fits on dirt bike dashboards, but is big enough to use on adventure bikes and UTVs. Voyager Pro’s mapping abilities and buddy tracking make it the premium choice for off-road riders.
Warranty 1 Year Warranty

Size & Fit Guide

VOYAGER PRO WHAT'S INCLUDED IN THE BOX

Voyager Pro Cluster Screen

HEAD UNIT
9200-R2
Voyager Pro GPS Device

Voyager Pro Docking Station

DOCK
9200-DOCK
Voyager Pro Docking Station

Voyager Pro Handlebar Mounting Hardware

BAR MOUNT
9200-1000
Voyager Pro Mounting for 7/8" and 1-1/8" Bars

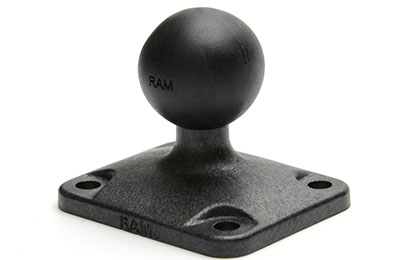

Voyager Pro Mounting Ball Plate

Ball Plate for Dock
3330109
Works with your existing hardware

Sensor, Tachometer, 70in

TACH SENSOR
9000-1021
70in, Senses Engine RPM

Sensor, Power Wire, 48in

POWER WIRE
9000-1011
48", Connect to Vehicle Battery

Voyager Pro Allen Wrench Dock Lock

DOCK LOCK
F-9200-005
Allen Wrench

Trail Tech

BONUS SWAG
010-SWAG
Random Keychain or Sticker

VOYAGER PRO INSTRUCTIONS AND MANUALS

Voyager Pro Quick Start Instructions

QUICK START
010-ELV-192
Get Started Fast

Voyager Pro User Manual

USER MANUAL
9200-MANUAL
Deep Dive Into Voyager Pro Features

VOYAGER PRO SCREENS AND ABILITIES OVERVIEW

Voyager Pro Cluster Screen

CLUSTER SCREEN
Dashboard Gauges
Get speed from the GPS or a wheel sensor. Displays speed, temperature, distance, elevation and voltage.

Voyager Pro Tachometer Screen

TACHBAR SCREEN
"Everybody loves the tach graph!"
The tach screen is dominated by a large animated tachometer bar graph. It also displays ambient temperature, trip distance and current speed.

Voyager Pro Map Screen

MAP SCREEN
GPS MAPS WITH BUDDY TRACKING
Color maps with topo and hillshading. Supports tracks, routes, waypoints. Plan and record entire trail systems. *Patent pending.

Voyager Pro Media Screen

MEDIA SCREEN
BLUETOOTH INTERACTION
Control volume, song playback (phone or SD card), dialing, call history and messaging features. Compatible with Bluetooth headphones and headsets such as Lexin, Cardo and Sena.

Voyager Pro User Screen

USER SCREEN
Choose your own gauges
The user screen is customizable. You can choose up to 6 gauge readouts from a long list of options. Select fewer gauges to make the remaining readouts larger.

Voyager Pro Stopwatch Screen

STOPWATCH SCREEN
Simple lap timer
Tap the large circle to begin counting. Tap it again to take note of the first lap off to the side and start timing a new lap.

Voyager Pro Satellite Screen

SATELLITE SCREEN
GPS satellites in range
The satellite screen displays a graph of the sky and visible GPS satellites in orbit. The graph to the side shows the relative signal strength of each satellite.

Voyager Pro Settings Screen

SETTINGS MENU
Detailed settings and user guide
The Settings Menu is where Voyager Pro is customized to your needs. You can access the settings menu from the main screens by pressing the menu button.

VOYAGER PRO SPECIFICATIONS

FUNCTIONS DISPLAY RANGE
FUNCTIONS

SPEED

DISPLAY

SPD

RANGE

0-320 KMH

FUNCTIONS

DISTANCE

DISPLAY

DST

RANGE

0-999,999 KM

FUNCTIONS

ELEVATION

DISPLAY

ELV

RANGE

9,000 METER

FUNCTIONS

ENGINE TEMP

DISPLAY

ENG

RANGE

-40-210°C

FUNCTIONS

ACCUMULATED
RUN TIME

DISPLAY

CLOCK

RANGE

0-99,999 HR

FUNCTIONS

GPS RECORD RATE

DISPLAY

TIME /
DISTANCE

RANGE

1,2,5 SEC /

1,5,10 M

POWER DESCRIPTION
POWER

EXTERNAL POWER INPUT

DESCRIPTION

8V-16V DC

POWER

INTERNAL BATTERY

DESCRIPTION

3.7V 3100 MAH LI-ION

POWER

BATTERY LIFE
(TYPICAL USE)

DESCRIPTION

1 HOUR

POWER

BATTERY LIFE
(100% BACKLIGHT)

DESCRIPTION

45 MINUTES

POWER

BATTERY CHARGE TIME

DESCRIPTION

3-8 HOURS

POWER

CHARGE TEMP RANGE

DESCRIPTION

0°C-55°C

FEATURE DESCRIPTION
FEATURE

ENVIRONMENTAL RATING

DESCRIPTION

IP67

FEATURE

MOUTNING PATTERN

DESCRIPTION

AMPS 30X38MM

FEATURE

EXTERNAL MEMORY

DESCRIPTION

MICROSD UP TO 64GB

FEATURE

INTERNAL MEMORY

DESCRIPTION

32GB

FEATURE

SCREEN SIZE

DESCRIPTION

480X272PX
101MM DIAGONAL
50.5MM X 89.2MM

FEATURE

PHYSICAL DIMENSIONS

DESCRIPTION

144 X 90 X 47MM

FEATURE

PHYSICAL WEIGHT

DESCRIPTION

410G

FEATURE

OPERATION TEMPERATURE

DESCRIPTION

0-60°C

FEATURE

STORAGE TEMPERATURE

DESCRIPTION

-20-80°C

VOYAGER PRO SOFTWARE UPDATE

SOFTWARE VERSION 1.3

We've added several new features to Voyager Pro since the release, including an array of UI and quality of life improvements, and extensive backend speed and reception updates.



Stay tuned, because we're not done yet. Voyager Pro's future looks bright, with various upgrades and customization options planned for 2021.



Trail Tech thanks you and wants you to know it is our continuing mission to create ongoing value for the powersports community.

COMMUNITY CREATED VOYAGER PRO VIDEOS

Chaparral goes over Voyager Pro screens and Buddy Tracking.

Watch Travis from Bike Bandit pre run the King Of Motos using the Trail tech Voyager Pro GPS system to navigate the area as well as keep tabs on bike temps etc.

Custom Installation by MotoMinded

Gnarly Routes blast the 5 Miles of Hell trail with Voyager Pro and blinding speed. Fun watch for sure.

Chaparral Motorsports does a great install video of the Voyager Pro on a KTM 500 EXC.

While Slick Rock is a pretty easy trail to follow it gets a lot harder (and slicker) when its wet out hiding the line. Voyager Pro leads Meeker Extreme to the features and back out of the trail system.

Voyager pro features – Much better screen, faster processing, vehicle integration / information, buddy tracking… by Meeker Extreme

User review by Kirk's Motorrad Shop and BMW Motorrad Club in Illinois. In conclusion, the Trail Tech Voyager Pro is an excellent GPS if you take it off road.
